01
48× PoE+Gigabit Ports
Triple FansActive Cooling
4× 10GSFP+ Uplinks
740WPoE Budget
01 · The Density

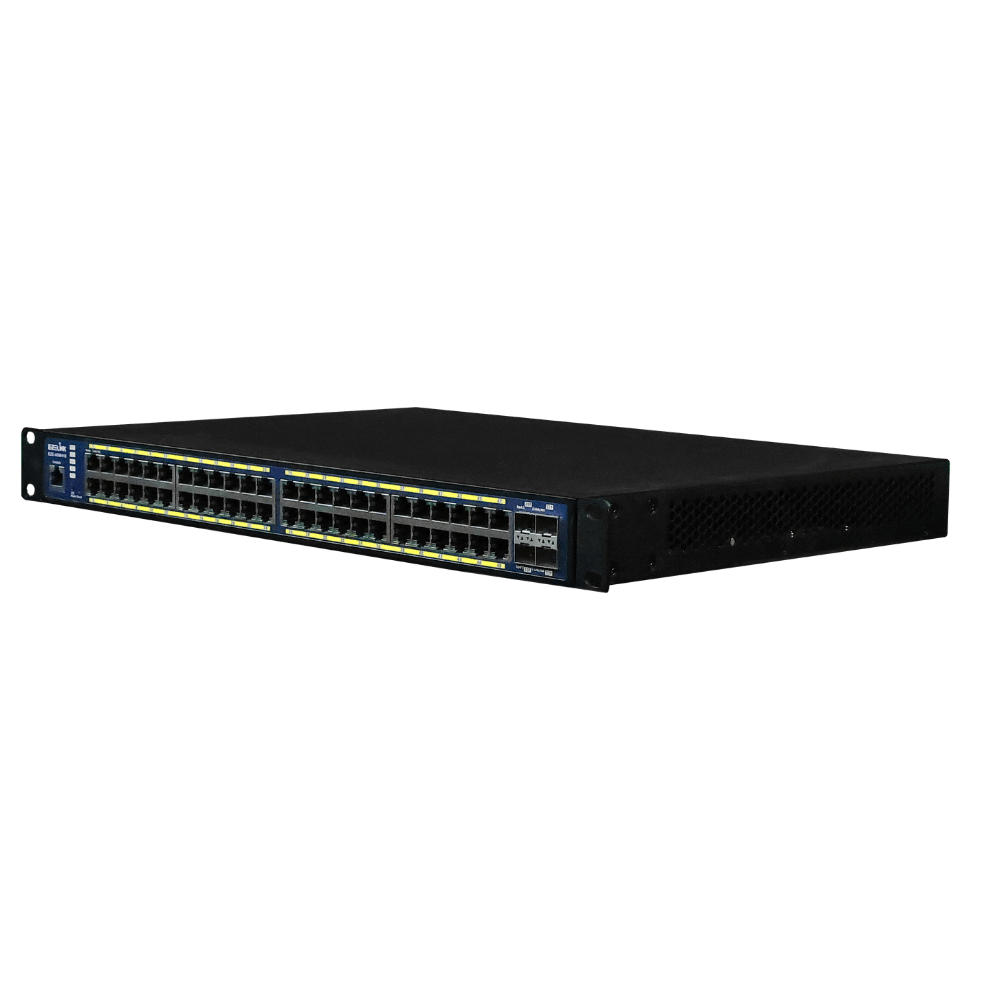

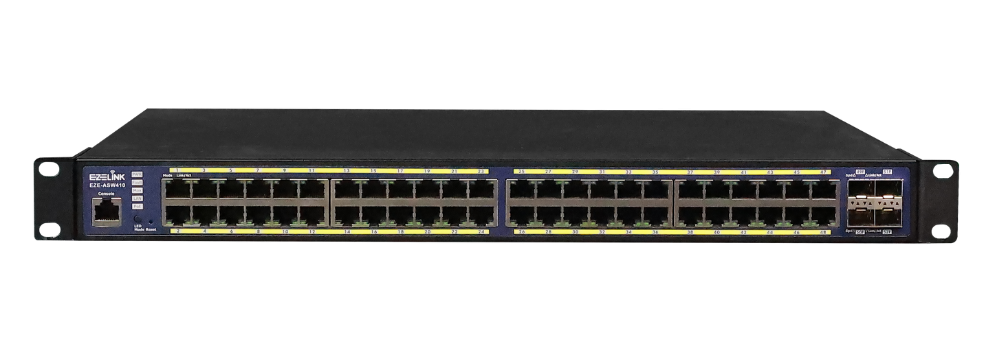

48-Port
High-Density PoE+
Two full floors of wireless coverage from a single 1U unit. The ASW410 packs 48 Gigabit PoE+ ports into one rack slot — enough to power and connect 48 access points, cameras, VoIP phones, or IoT devices at once. With a 740W total budget and up to 30W per port, every connected device gets the power it needs without compromise.
740WTotal PoE Budget · 48 Gigabit Ports · IEEE 802.3at
Halve Your Switch Count
Replace two 24-port switches with one ASW410 — one management interface, one uplink, one power connection. Far simpler for large floors and campus networks.
02 · The Thermals

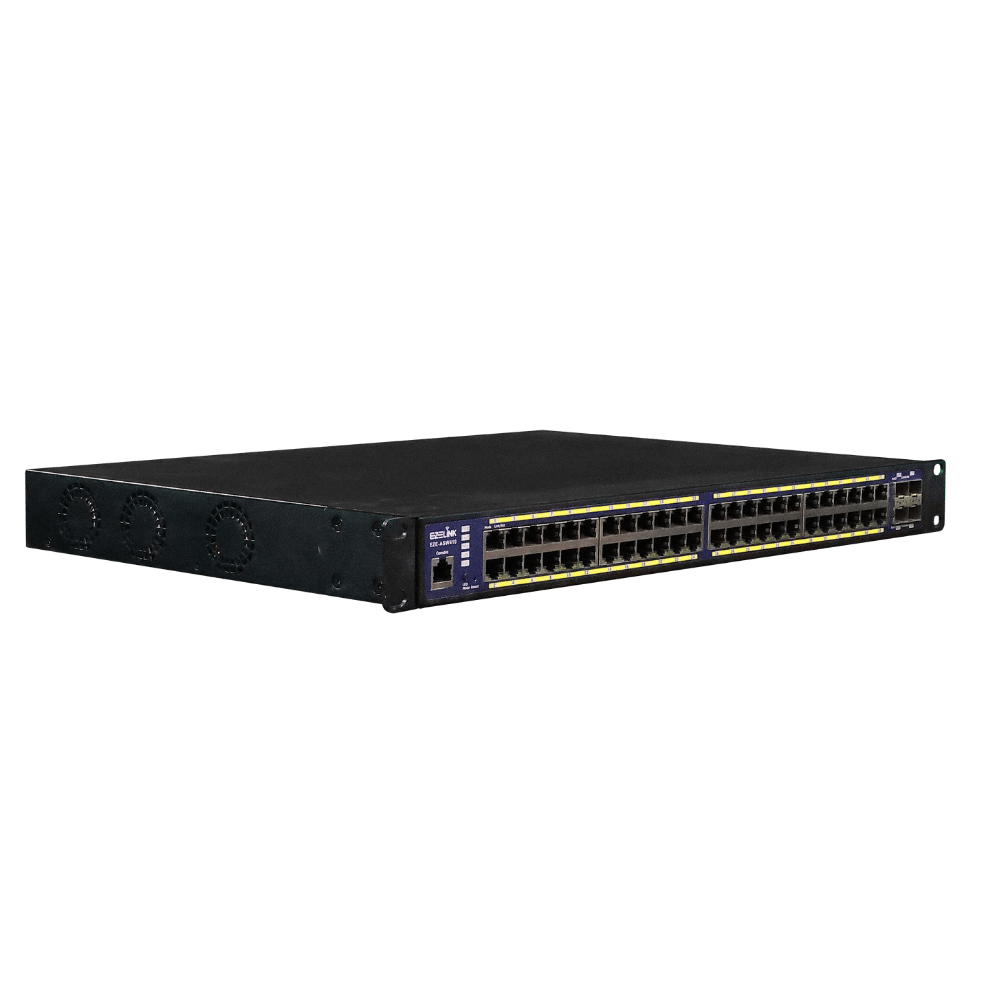

Triple-Fan
Thermal Design
740W of PoE flowing through 48 ports generates serious heat. The ASW410's three active cooling fans hold stable operating temperatures even at full load, in the confined space of a network closet or IDF cabinet. Designed for 24/7 operation in environments where cooling is limited and downtime is not an option.
740WSustained PoE
3×Active Fans
FullLoad Rated
24/7Operation
Engineered for Dense Racks
Three fans in parallel ensure consistent airflow across the full chassis width — critical when adjacent rack equipment limits natural convection.
03 · The Uplink
4× 10G SFP+
Uplinks
48 active Gigabit ports can generate substantial uplink demand at peak. Four 10G SFP+ uplinks provide 40 Gbps of aggregate bandwidth to the distribution layer — well ahead of real-world access-port saturation. Bond multiple uplinks via LACP for redundancy and throughput, and connect via fiber for structured cabling runs to the MDF or core switch room.
10GSFP+ 1
10GSFP+ 2
10GSFP+ 3
10GSFP+ 4
40GAggregate
Scale Without Bottlenecks
48 access ports feeding 40 Gbps of uplink capacity — pair with the EZE-CSW510 core over a fully managed backbone.
04 · In Control
Enterprise L3
Management
The ASW410 handles the full enterprise feature set at scale. Layer 3 routing — static, RIP, and OSPF — keeps inter-VLAN traffic inside the switch rather than loading the firewall. 802.1Q VLANs segment large deployments cleanly. QoS, ACLs, DHCP snooping, storm control, IGMP snooping, and LLDP cover every network-operations requirement. EZELINK delivers every unit pre-configured and monitors it 24/7 from our GCC NOC.
RoutingStatic, RIP, OSPF, inter-VLAN wire-speed
VLAN802.1Q tagged VLANs
QoS802.1p, DSCP, port-based priority
SecurityACL, DHCP snooping, storm control
DiscoveryLLDP · IGMP snooping
ProvisioningZero Touch Provisioning · 24/7 NOC
