01
24× PoE++802.3bt Ports
600WTotal PoE Budget
4× 10GSFP+ Uplinks
L3 RoutingOSPF / RIP
01 · The Power
60W PoE++
Per Port
Standard PoE+ tops out at 30W — enough for a basic access point, not for high-performance WiFi 7 APs, PTZ cameras, or digital signage that demand more. The ASW320 delivers up to 60W per port under IEEE 802.3bt (PoE++), with a 600W total budget across all 24 ports. One cable handles data, power, and PoE negotiation for even the most demanding edge devices.
PoE
PoE+
PoE++ · ASW320
Future-Ready Power
WiFi 7 APs, 4K IP cameras, and video-collaboration endpoints all exceed the 30W PoE+ ceiling. The ASW320 powers them natively — no injectors, no adapters.
02 · The Thermals
Built to Run
at Full Load

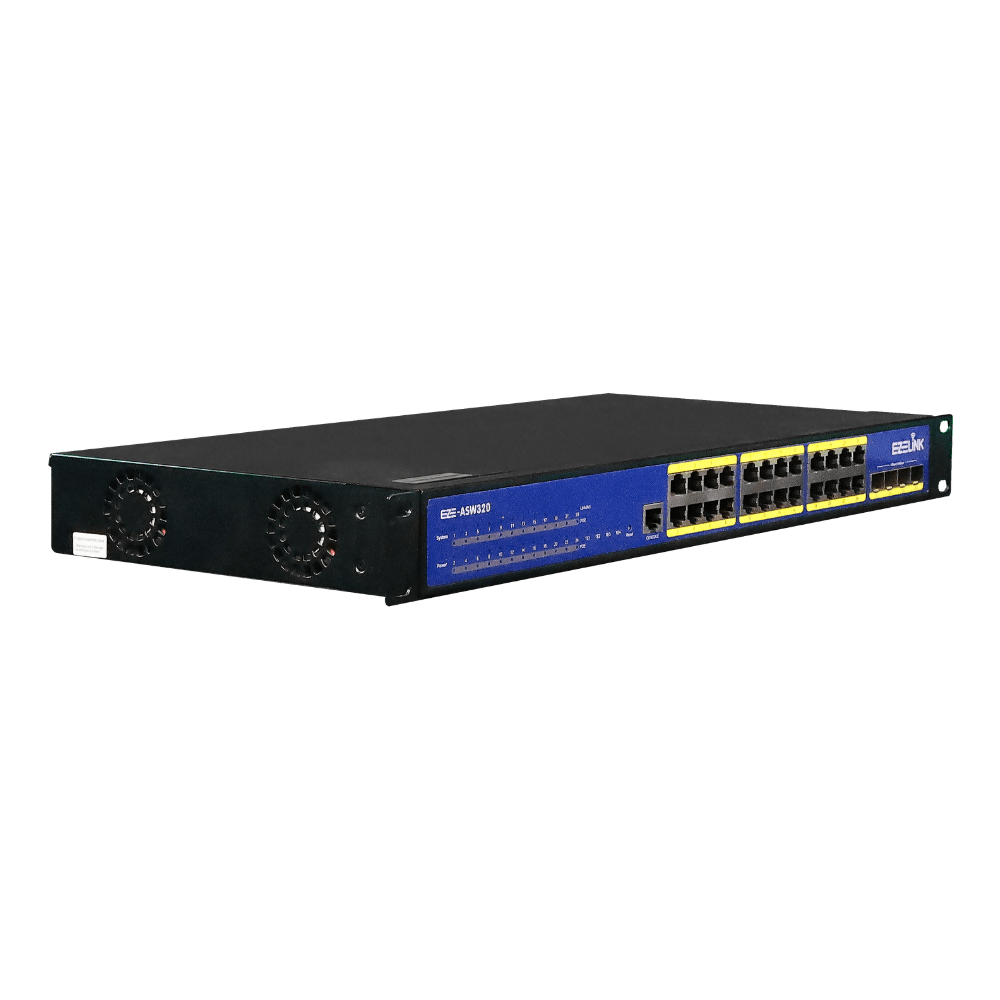

Delivering 600W of PoE generates significant heat. The ASW320 is engineered for sustained full-load operation — dual high-flow cooling fans hold safe operating temperatures even when all 24 ports push maximum PoE power at once. Designed for always-on network closets and IDF racks where thermal reliability is non-negotiable.
600WSustained PoE
DualActive Fans
FullLoad Rated
24/7Operation
Thermal Confidence
Rack-mounted network gear runs 24/7. Active cooling keeps component temperatures stable regardless of ambient conditions or port utilisation.
03 · The Uplink
4× 10G SFP+
Uplinks
When your edge devices are high-performance — WiFi 7 APs pushing 5+ Gbps, 4K cameras at high bitrates, video endpoints — the uplink has to match. Four 10G SFP+ ports deliver up to 40 Gbps of aggregate capacity to the distribution layer. Fiber and DAC support means flexible, cost-effective connectivity to the core regardless of rack location.
10GSFP+ 1
10GSFP+ 2
10GSFP+ 3
10GSFP+ 4
40GAggregate
Match the Edge to the Core
High-power edge devices generate high-bandwidth traffic. Pair with the EZE-CSW510 core over a fully managed backbone.
04 · In Control
L3 Intelligence
& Full Control
Every feature of the ASW310 — plus headroom for power-hungry deployments. Static routing, RIP, and OSPF handle inter-VLAN routing at wire speed. 802.1Q VLANs, QoS, DHCP snooping, ACLs, storm control, and IGMP snooping cover the full enterprise L2/L3 set. Manage via web GUI, CLI, or SNMP v1/v2c/v3. EZELINK pre-configures every unit and monitors it live from our GCC NOC.
RoutingStatic, RIP, OSPF, inter-VLAN wire-speed
VLAN802.1Q tagged VLANs
QoS802.1p, DSCP, port-based priority
SecurityACL, DHCP snooping, storm control
AccessWeb GUI, CLI, SNMP v1/v2c/v3
ProvisioningZero Touch Provisioning · 24/7 NOC
