01
24× PoE+Gigabit Ports
L3 RoutingOSPF / RIP
4× 10GSFP+ Uplinks
370WPoE Budget
01 · The Power
24-Port
PoE+ Power
Scale up without scaling complexity. The ASW310 delivers PoE+ power across 24 Gigabit ports — enough to drive an entire floor of access points, IP cameras, VoIP handsets, and IoT devices from a single 1U unit. With a 370W total budget, ports power devices simultaneously, removing the need for separate power infrastructure at every endpoint.
370WTotal PoE Budget · 24 Gigabit Ports · IEEE 802.3at
Power More, Cable Less
24 data-and-power connections from one switch — ideal for dense office floors, hotel guest areas, or campuses deploying WiFi coverage at scale.
02 · The Intelligence
Layer 3
at the Edge
Moving from 16 to 24 ports usually means more VLANs, more subnets, and more inter-department traffic. The ASW310 handles it all in silicon — static routing, RIP, and OSPF keep inter-VLAN forwarding at wire speed inside the switch. Staff, guest, IoT, and surveillance traffic stay logically separated and route intelligently without saturating the firewall upstream.
Inter-VLAN Routing — On the Switch
VLAN 10 · Staff
VLAN 20 · Guest
VLAN 30 · IoT
VLAN 40 · Cameras
ASW310L3 Routed
Traffic between VLANs is routed on the switch at wire speed — not backhauled to the gateway — cutting latency and offloading the firewall.
03 · The Uplink
4× 10G SFP+
Uplinks
24 active Gigabit ports can generate significant uplink demand at peak. The ASW310's four 10G SFP+ uplinks provide up to 40 Gbps of aggregate bandwidth — far ahead of what 24 access ports can realistically saturate. Run fiber for long building runs, or DAC cables for zero-cost connections within the same rack. LACP bonds the uplinks for redundancy and higher throughput.
10GSFP+ 1
10GSFP+ 2
10GSFP+ 3
10GSFP+ 4
40GAggregate
40 Gbps Headroom
LACP across the 4 SFP+ ports bonds uplinks for redundancy and throughput — pair with the EZE-CSW510 core over a fully managed backbone.
04 · In Control
Full-Feature
Management
Enterprise networking demands control over every port. The ASW310 delivers 802.1Q VLANs, QoS prioritisation, ACL access control, DHCP snooping, storm control, IGMP snooping, and LLDP topology discovery. Manage through a clean web GUI, full CLI, or SNMP v1/v2c/v3. EZELINK pre-configures every unit via Zero Touch Provisioning and monitors it 24/7 from our GCC NOC — dual active fans keep it cool under a full PoE load.
VLAN802.1Q tagged VLANs, inter-VLAN routing
QoS802.1p, DSCP, port-based priority
SecurityACL, DHCP snooping, storm control
AccessWeb GUI, CLI, SNMP v1/v2c/v3
DiscoveryLLDP · IGMP snooping

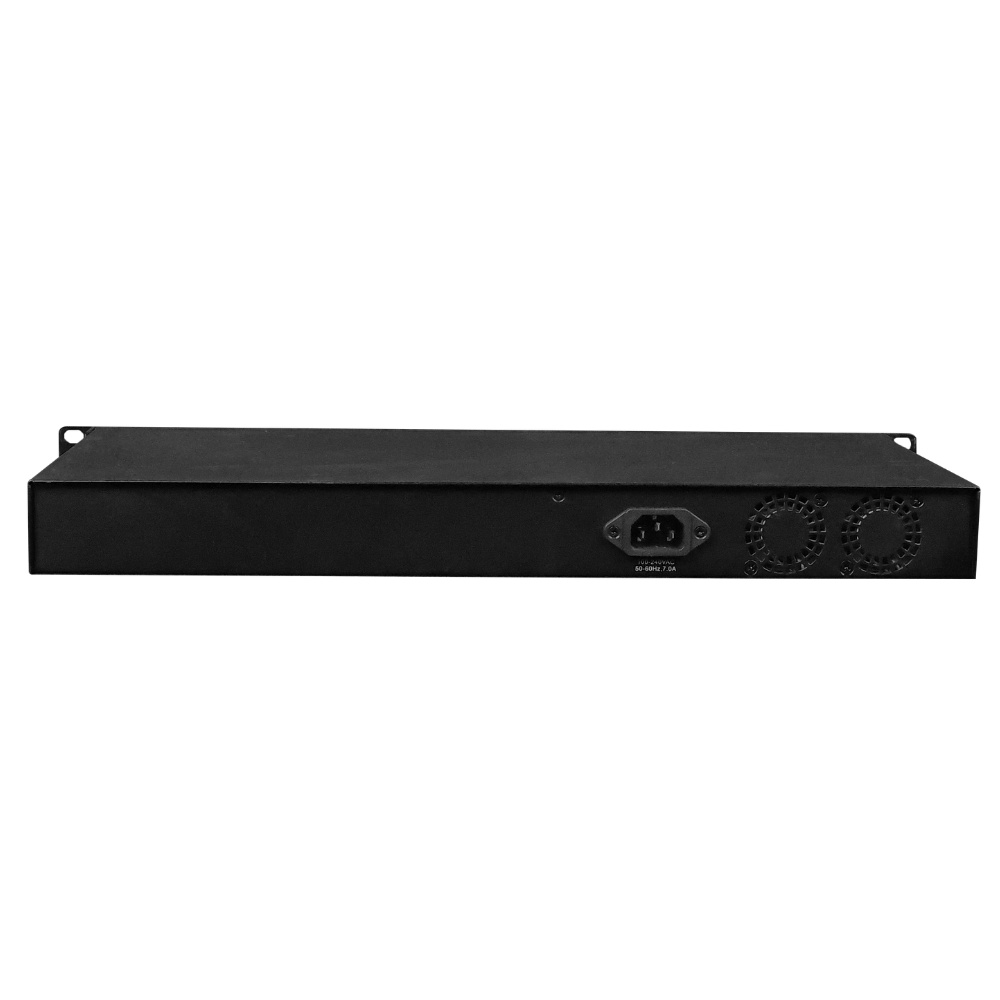

CoolingDual active fans · 1U rack
