01
5G NSA + SA Active
5G + 4GAuto Fallback
9 NR BandsSub-6GHz
IP65Weatherproof
Qualcomm X555G Chipset
01 · The Network
5G + 4G.
Everywhere.
The EZE-5G2310 supports both 5G NR NSA and SA architectures, ensuring compatibility with current and next-generation 5G across all GCC operators. When 5G coverage is unavailable, it falls back to 4G LTE automatically — no dropped connection. Nine 5G Sub-6GHz NR bands and ten 4G FDD/TDD bands give universal operator compatibility across the region.
5GN1 · N3 · N7 · N8 · N28 · N40 · N41 · N77 · N78Active
4GB1 · B3 · B7 · B8 · B20 · B28 · B38 · B40 · B42 · B43Fallback

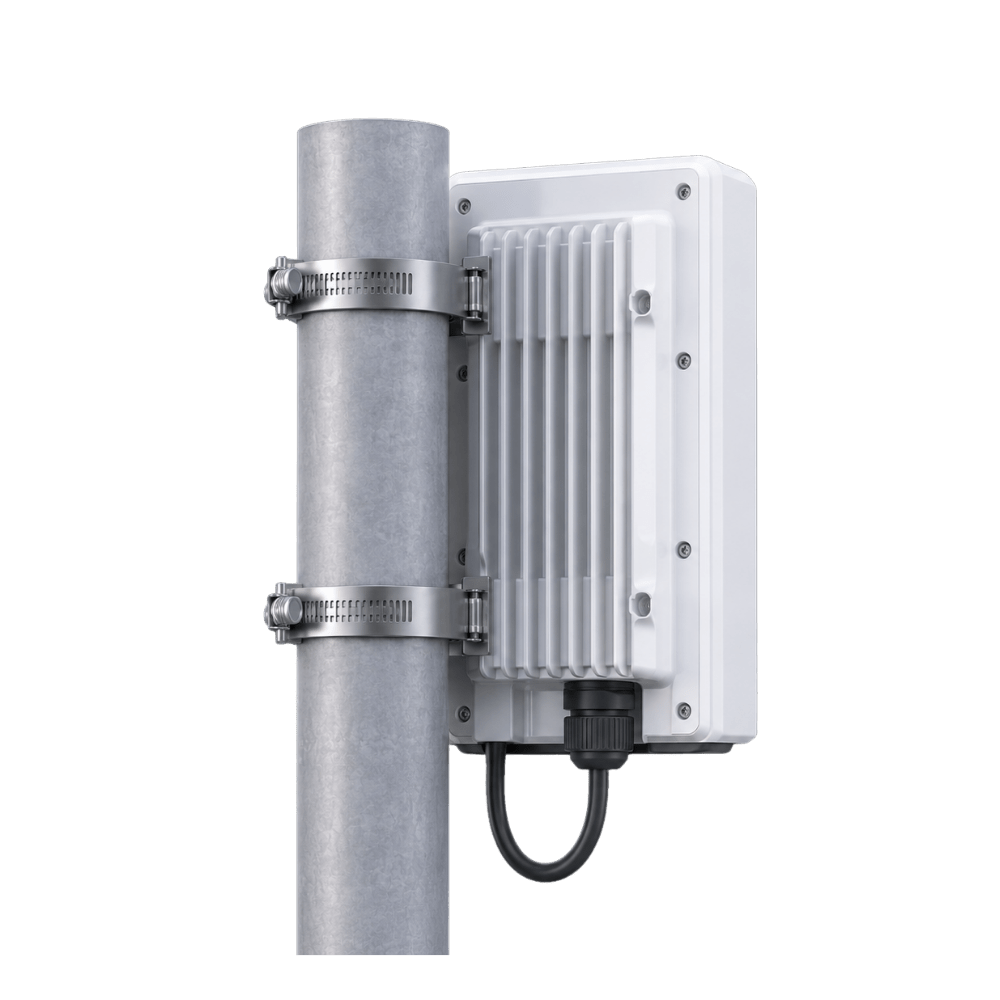

02 · The Enclosure
Built for
the Outdoors.
IP65-rated housing gives complete protection against dust and water jets — surviving Gulf humidity, sandstorms, and rain. A 6KV lightning-protection circuit guards the 2.5GbE Ethernet port, critical for rooftop and pole mounts, and an integrated pre-heating mechanism ensures reliable cold-start. A single PoE cable carries both power and data — no outlet at the mounting point.
IP65Dust + Waterproof
6KVLightning Protection
75°COperating Range
2.5GLAN + PoE In
03 · The Radio
Qualcomm X55.
10-Antenna Array.
At the core is the Qualcomm Snapdragon X55 modem. The integrated array comprises 10 elements — 8 omni-directional antennas (5 dBi) for broad coverage plus 2 directional antennas (9 dBi) for extended range in line-of-sight scenarios. The 4×4 MIMO downlink quadruples spectral efficiency versus single-stream devices, while 2×2 MIMO uplink handles upload-intensive IoT and surveillance workloads.
MIMO Stream Configuration
Downlink
DL1DL2DL3DL4
4×4
Uplink
UL1UL2——
2×28× Omni 5 dBi + 2× Directional 9 dBi — 10 antenna elements for optimal signal acquisition in every orientation.
04 · In Service
Smart Setup.
Remote Control.
A Bluetooth 5.3 installation-assistant app guides field technicians to optimal pointing and placement with real-time signal strength — no laptop or on-site network access needed. Once deployed, the device is managed remotely via TR069 and LWM2M for live RAM and temperature monitoring, with Secure Boot and FOTA over-the-air updates. Fully managed by EZELINK from our GCC NOC, 24/7.
BLE Install App
Bluetooth 5.3 guide for optimal installation pointing.
TR069 + LWM2M
Remote config and live RAM / temp monitoring.
Secure Boot
Hardware-level protection against unauthorized firmware.
FOTA Updates
Automatic firmware-over-the-air across the fleet.
